Introduction
1
The YM-1(B) APM has been recovered from munitions caches in the Middle East. Externally, it appears very similar to the earlier Iranian-produced YM-1 antipersonnel mine, which itself is a copy of the Italian (Tecnovar Italiana SpA produced) TS-50 antipersonnel mine.
However, the YM-1(B) incorporates an apparent safe-arm mechanism heretofore not encountered by most demining organizations. Distribution and employment of both the YM-1 and the YM-1(B) beyond the Middle East is presently unknown.
This information is being provided because the modified YM-1(B) may be encountered during demining and mine clearance operations currently being conducted in Afghanistan2. The modifications may lead many demining organizations to believe that the YM-1 (B) incorporates an antihandling feature.
1. Scope
This Technical Note provides “First Look” information on a possible new variant of the YM-1 APM.
2. Background

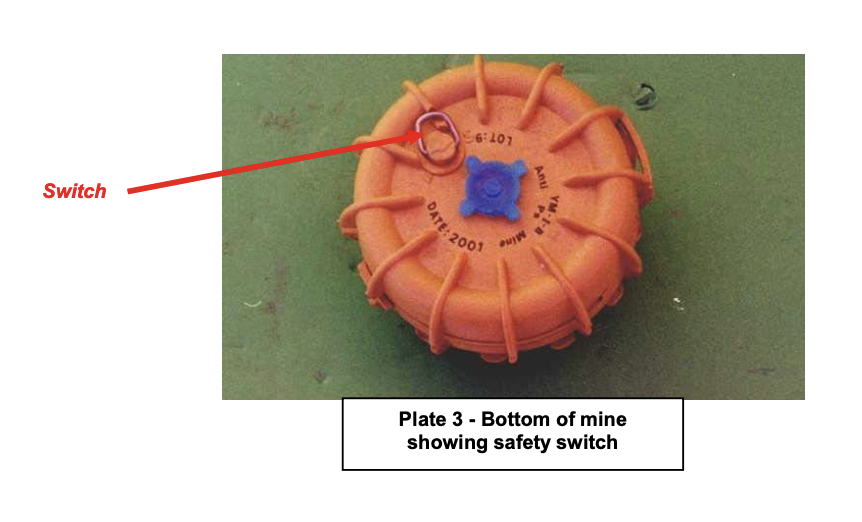

From initial technical exploitation the YM-1(B) appears to be a variant of the YM-1 antipersonnel mine. This initial exploitation indicates that the switch, located on the bottom of the YM-1(B) – see attached picture – is an additional safety mechanism, offering a positive block of the internal firing components.
WARNING: Until further technical information becomes available mine action personnel should NOT consider moving the switch as part of a render safe procedure. Current technical advice is that destruction in situ is the preferred option.
3. Description
The YM-1(B) appears to use the same casing as the earlier Iranian-produced YM-1, but there is not yet any information as to the full range of colours used for the mine body. The mines recovered to date are coloured as in the below photographs. Based on experience with the YM-1 in Afghanistan, this variant should also be considered as a minimum metal mine for detection purposes.
Externally, both mines appear the same, with the exception of a switch on the bottom of the YM- 1(B) mine next to the detonator assembly, and embossed markings on the pressure plate of the mine with the nomenclature “YM-1” and the letter “B” in a circle. Stenciled markings on the bottom of the mine include the nomenclature “YM-1-B”, the date of manufacture and the lot number. No further details are currently available.
4. Mode of operation
Until recovered samples of the YM-1(B) can be fully evaluated and tested, no definitive information can be provided on the functioning of the YM-1(B).
Amendment Record Management of Technical Notes amendments
Technical Notes (TN) are subject to review on an ‘as required’ basis. As amendments are made to this TN they will be given a number, and the date and general details of the amendment shown in the table below. The amendment will also be shown on the cover page of the TN by the inclusion under the version date of the phrase ‘incorporating amendment number(s) 1 etc.’
As reviews of TN are made new versions may be issued. Amendments up to the date of the new version will be incorporated into the new version and the amendment record table cleared. Recording of amendments will then start again until a further version is produced.
The most recently amended TN will be the versions that are posted on the IMAS website at
www.mineactionstandards.org.
Number | Date | Amendment Details |
|---|---|---|
01 |
01 Jul 2013 |
|
Footnotes
1 All information in this Technical Note was kindly provided by the U.S. Department of Defense.
2 The Mine Action Centre for Afghanistan (MACA) has already been informed of this threat under separate cover.
